SKY MANTA

SKY SERIES TENSIONED SHADE STRUCTURES

The Sky Series shade structures are unique architectural and sculptural forms. Aesthetics and functional shade meet in a spectacular expression of fabric and steel flowing in unison to create a shade that has a contemporary feel.

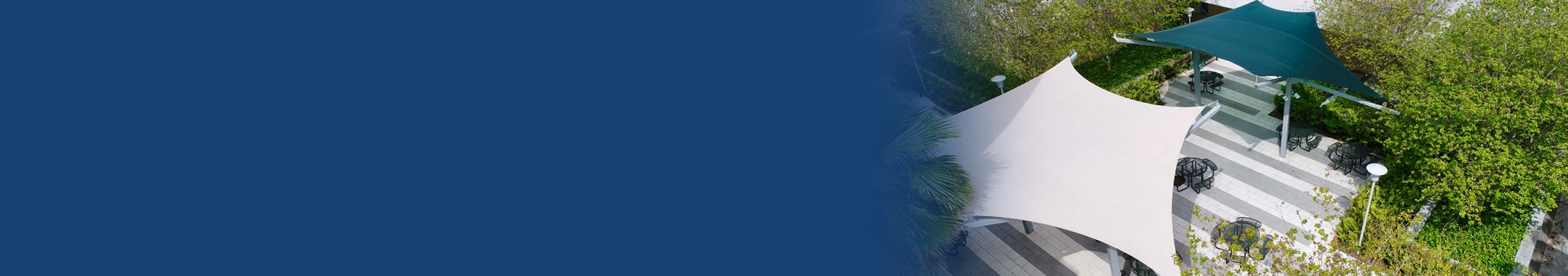

Sky Manta

Our Sky Manta consists of a tensioned shade sail that flows up and outwards with the main center structure at the head, mimicking a soaring Manta Ray. It’s supported by two center columns and three point beams as the wingspan.

KEY:

  • Not actual foundations (vary per application)
  • Top = Top of footing
  • FF = Top of the finish surface
  • V/A = Varies per application
sky-nuts
  • Direct embedment column is standard
  • Installation with anchor bolts available (inquire)
  • F-1554 GRD 36 or 55 Threaded Rod+Nuts not supplied
  • Size Ø and length per design and application
  • Level washers and non-shrink grout not supplied

ANCHOR SYSTEM

skymanta-layout

PLAN LAYOUT

skymanta side shade structure

SIDE ELEVATION

FRONT ELEVATION

NOTES:

  • Installation to be completed in accordance with manufacturer’s specifications.
  • Do not scale drawing.
  • This drawing is intended for use by architects, engineers, contractors, consultants & design professionals only.
  • This drawing may not be used for construction.
  • All information contained herein is subject to change by Apollo Sunguard.
  • Structural members & foundations are designed according to applicable local codes & latest edition of IBC as per ICC.
  • Shade fabric designed for easy & quick removal. QRS – Quick Release System
  • Contact Apollo Sunguard for customization.

COLOR OPTIONS

Did you know?
The darker the fabric color, the cooler the temperature underneath!

ACCESSORIES

Enhance your shade structure with custom logos, post panels, lighting and more!

*Lights and solar panels are not sold by Apollo Sunguard. The fabricated steel we
provide, however, is perfect for accommodating these add-ons.

Post Pads on a kids playground
Post Pads
Side Panels
buccaneers flag
Custom Logos
Charge Station
Charging Stations
lights on the corner of shade structure
*Lights
Solar Panel
*Solar Panels
Industry's Strongest Warranty Non Pro-Rated 15 Years Fabric 20 Years Frame badge.

WARRANTY

We warranty all steel framework for 20 years and all fabric covers for 15 years.

Apollo Sunguard Warranty

Sun shining brightly in sky among clouds.

ULTRAVIOLET
PROTECTION

Our fabric is tested by an independent laboratory and a large selection of colors meet a minimum of 93% UV Block.

Rectangular shade structure fabric in front of sky.

FABRIC

Apollo Sunguard Shade Cloth® is known for its great strength, vibrant colors and durability.

blue shade connected through base structure

QUICK RELEASE
SYSTEM

Our innovative shade structures are uniquely designed with a quick release system to remove the fabric covers.
